IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets

Name: IEC 621962 EV Charging Interface Test Gauges 16A32A63A Test Plugs amp Inlets
Brand: Sinuo
Price: 1 USD

Best IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets wholesale

Contact Dimension Tolerance : +0.01 / 0 mm

Certification : Calibration Certificate (Cost Additional)

Contact Material : Hardened steel

Delivery Time : 30 Days

Contact Spacing Tolerance : ± 0.05 mm

Contact Processing : Finely ground

Surface Roughness : ≤ 0.8 μm (active length)

Brand Name : Sinuo

Price : Customized

Place of Origin : China

Standard : IEC 62196-2, IEC 62196-3

Supply Ability : 100 Sets Per Month

Packaging Details : Plywood

Payment Terms : T/T

Model Number : SNQC1013

MOQ : 1

Contact Now

IEC 62196-2 EV Charging Interface Test Gauges | 16A/32A/63A Test Plugs & Inlets

Product Information

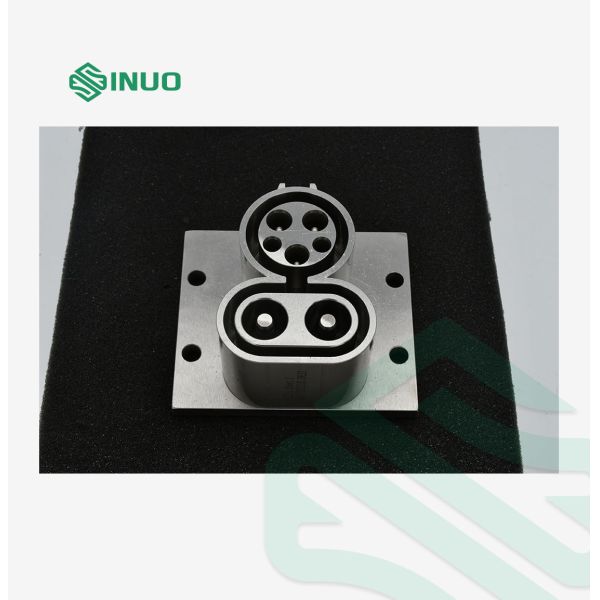

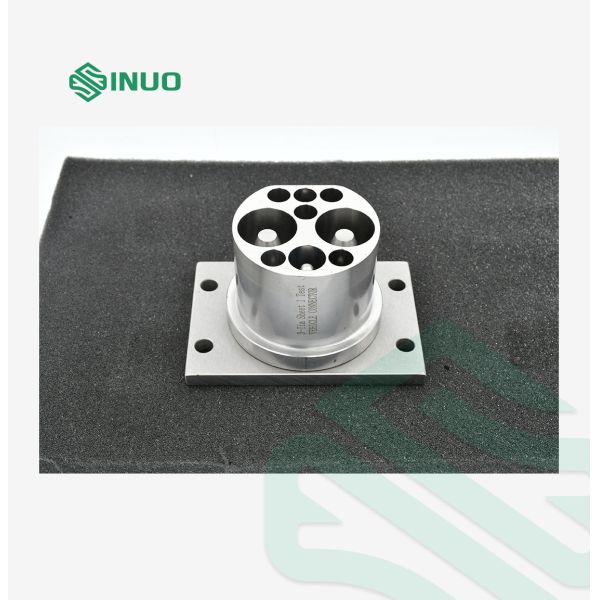

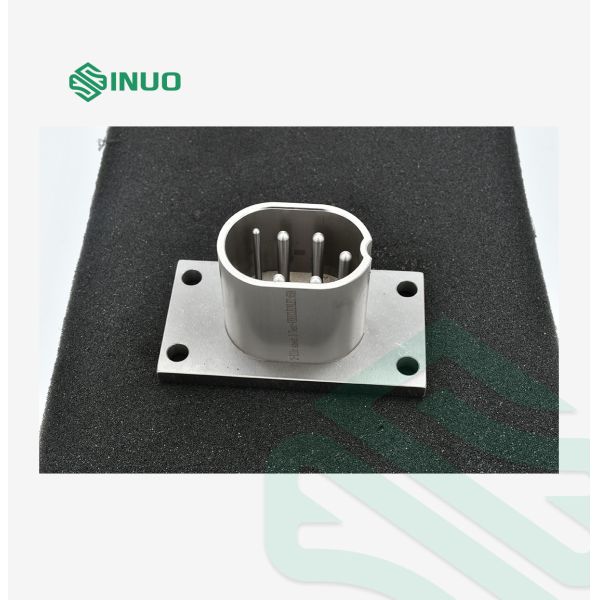

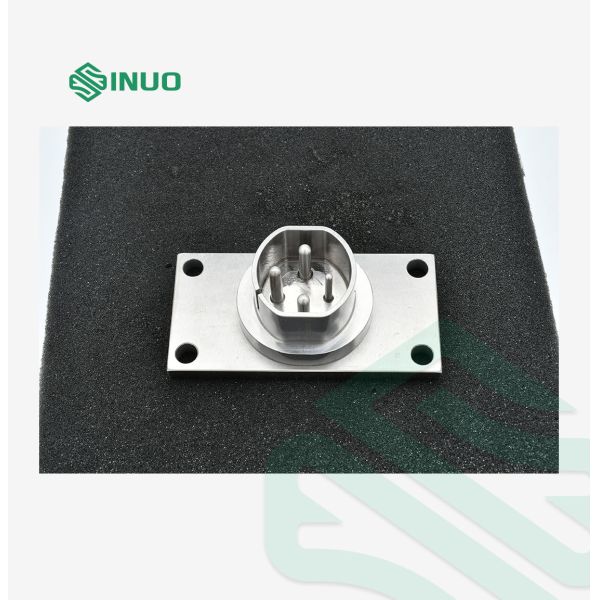

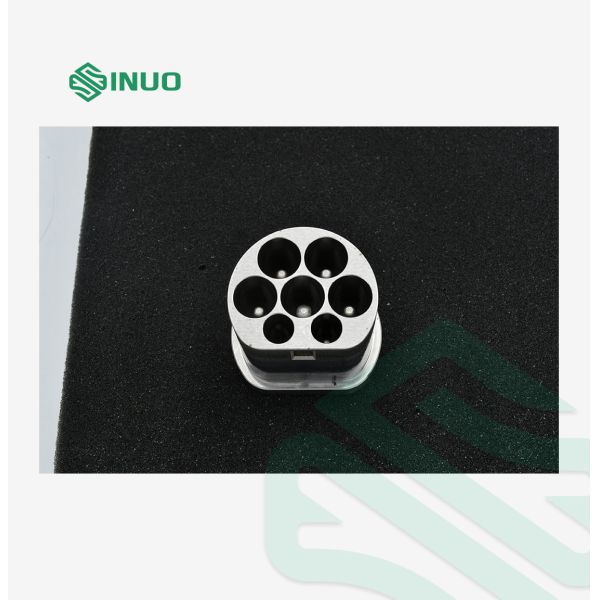

The test gauges are manufactured in accordance with the relevant standard sheets, featuring finely ground contacts made of hardened steel. The surface roughness of the contacts shall not exceed 0.8 μm over their active length, and the contacts are spaced at nominal distances with a tolerance of ±0.05 mm.

The dimensions of the plug contacts, as well as the distance between contact surfaces for other types of plug contacts, shall comply with the minimum dimensions specified in the relevant standard sheets, with a tolerance of +0.01/0 mm.

Complied Standards & Clauses

Test Gauges List

No.	Standard	Figure No.	Name
1	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-I sheet 1	Test-plug:32A,250 V AC VEHICLE INLET
2	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilb sheet 1	Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
3	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ild sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
4	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Ilf sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE
5	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 1	Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT
6	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illa sheet 3	Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
7	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 1	Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS
8	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illb sheet 3	Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
9	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 1	Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS
10	IEC62196-2/Ed.3/CDV © IEC(E)	STANDARD SHEET 2-Illc sheet 3	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
11	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ib Sheet 1	Test Vehicle Connector
12	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1	Test Vehicle Connector
13	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-IIIa Sheet 2	Test Vehicle Inlet
14	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2	Test Vehicle Inlet
15	IEC62196-3/Ed.2/CDV © IEC(E)	STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1	Test Vehicle Inlet
